Modern vehicles are no longer just mechanical machines. They operate as rolling data centers. The crucial infrastructure enabling this transformation is the automotive wire harness. Advanced Driver Assistance Systems (ADAS) and EV architectures increase system complexity. Vehicle electrical grids face exponential spikes in weight and power demands. Engineers can no longer treat wiring as an afterthought.
Understanding basic mechanics gives you a baseline. Engineering and procurement teams face a much deeper challenge. You must evaluate design integrity meticulously. You need to ensure rigid automotive compliance. Teams must mitigate implementation risks during mass production. We will explore how these systems function. We will also break down the frameworks needed to select a reliable manufacturing partner.
An automotive wire harness functions as the central nervous system of a vehicle, efficiently routing both power and complex data signals in highly constrained physical spaces.
Implementation risks primarily revolve around Electromagnetic Interference (EMI), thermal degradation, and weight limitations, requiring rigorous material evaluation.
Evaluating a wire harness solution or manufacturing partner requires strict adherence to industry standards, notably IATF 16949, USCAR, and IPC/WHMA-A-620.
Scalability and automated testing capabilities (e.g., Hi-Pot, continuity) are the defining metrics for shortlisting a vendor in the decision stage.
Recognizing internal structural components is essential. It helps you identify potential failure points early. This knowledge benefits procurement and quality assurance (QA) teams during vendor evaluation. You cannot assess a product without knowing its fundamental building blocks.
Conductors serve as the physical medium for load-bearing and signal transmission. Manufacturers traditionally use copper. However, the industry is shifting toward aluminum alloys. This shift significantly reduces vehicle weight. EV manufacturers prioritize weight reduction to improve battery range. You must balance conductivity against tensile strength when selecting materials.

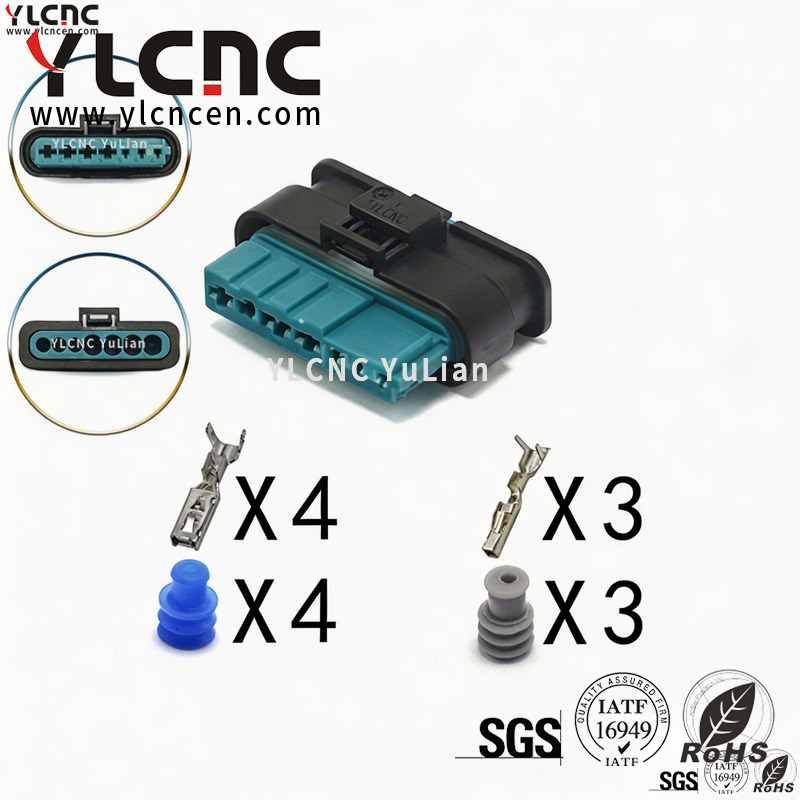

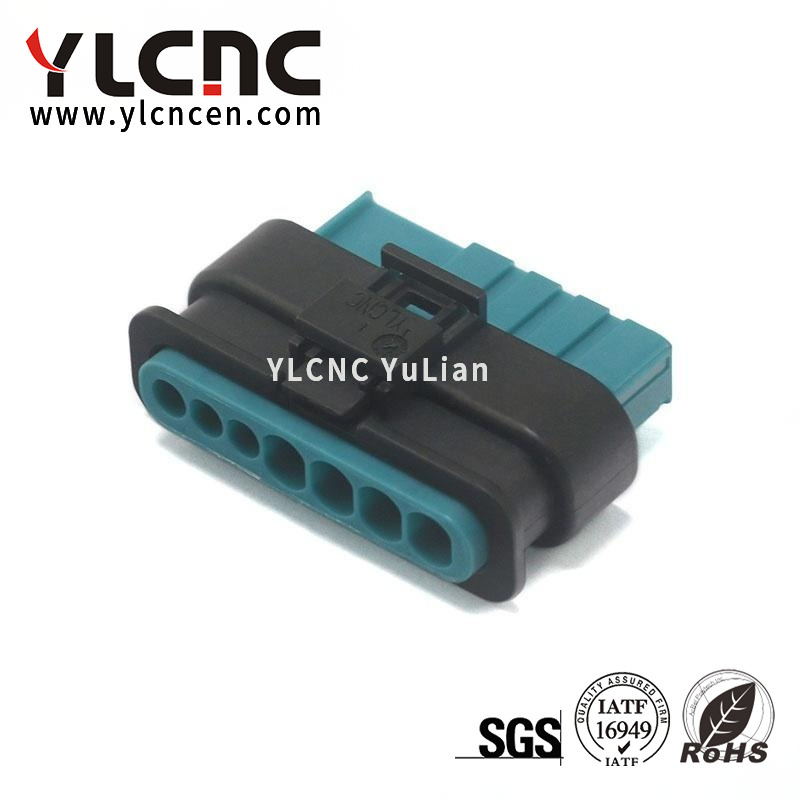

These components act as critical junction points. Engineers evaluate them based on pin count and ingress protection (IP ratings). Connectors must block moisture and dust completely. Vibration resistance is another crucial factor. Loose terminals cause intermittent electrical faults. These faults frustrate diagnostic technicians and lead to warranty claims.
Engine bays are exceptionally harsh environments. A well-designed wire harness requires robust exterior protection. Manufacturers utilize conduit, specialized tape, and braided sleeves. These materials mitigate abrasion against metal brackets. They protect sensitive inner wires from automotive fluid exposure. They also prevent thermal shock from extreme engine heat.
Electrical surges happen. Integrated circuitry protection prevents catastrophic system failures. Fuses blow to stop excessive current. Relays control high-power circuits using low-power signals. Their integration ensures sensitive electronic control units (ECUs) remain safe from sudden voltage spikes.
Conductors: Carry the actual current and data.
Terminals: Ensure secure metal-to-metal connection points.
Housings: Lock terminals in place and provide environmental sealing.
Sheathing: Defends against abrasion and extreme heat.
Relays/Fuses: Act as the first line of defense against electrical faults.
Vehicle assembly requires precision and speed. The operational logic of a harness prevents "spaghetti wiring." It consolidates hundreds of individual wires. It bundles them into a single, structured assembly. This consolidation allows for seamless plug-and-play installation on the OEM assembly line. It reduces human error and speeds up manufacturing.
A modern assembly handles two entirely different electrical tasks. They require different design approaches. Mixing them improperly causes severe operational issues.
Power routing focuses on brute force. It distributes high-voltage currents safely from the battery. It powers heavy-load components like starter motors and HVAC blowers. These wires are thick and heavily insulated.
Data routing requires finesse. It transmits low-voltage, high-speed data. Modern vehicles use CAN bus or Automotive Ethernet protocols. These cables connect interconnected ECUs. They must transmit data without latency or signal loss. Any delay in an ADAS braking signal could prove fatal.
Power vs. Data Routing Characteristics
Characteristic | Power Distribution | Data Transmission |
|---|---|---|
Voltage Level | High (12V to 800V in EVs) | Low (Typically under 5V) |
Wire Gauge | Thick (Low AWG) | Thin (High AWG) |
Primary Risk | Overheating / Melting | Data Latency / Signal Loss |
Key Protection | Heavy Insulation / Fuses | Twisted Pairs / EMI Shielding |
Think of a vehicle as a biological organism. The nervous system relies on uninterrupted pathways to function. A car relies entirely on its wiring to translate driver inputs. When you press the brake pedal, you send a signal. The wiring guarantees an immediate mechanical or electronic output. Any disruption in this pathway paralyzes the system.
Substandard design leads to disastrous consequences. It causes costly manufacturing bottlenecks. It triggers massive warranty claims. In worst-case scenarios, it forces widespread vehicle recalls. You must identify and mitigate these risks early in the design phase.
Automotive chassis designs are incredibly rigid. Engineers face immense physical challenges. They must thread bulky assemblies through very tight clearances. Poor routing creates dangerous pinch points. Excessive bend radiuses stress the internal copper strands. Over time, these stressed strands snap. This breakage causes silent electrical failures.
Vehicles operate in extreme climates. You must assess the risk of insulation breakdown carefully. Continuous exposure to extreme temperature fluctuations degrades standard plastics. Automotive fluids like oil, coolant, and brake fluid dissolve cheap sheathing. You must specify materials tested for chemical resistance and thermal endurance.
Data cables carry sensitive information. High-voltage power lines generate strong magnetic fields. Placing them too close causes crosstalk. EMI disrupts sensor readings and communication protocols. Proper shielding is an absolute necessity. You must evaluate foil and braided shielding options. This evaluation is critical for EV and autonomous vehicle architectures.
Vendors often make vague claims about "high quality." These claims are completely unverifiable. You need objective metrics. Strict adherence to established automotive manufacturing standards proves capability. These frameworks separate premium suppliers from amateur shops.
IATF 16949 & ISO 9001: These are the foundational quality management system requirements. They dictate process control for automotive supply chains. A vendor without IATF 16949 cannot supply major OEMs.
IPC/WHMA-A-620: This represents the industry consensus standard. It governs cable and wire harness fabrication. It outlines strict acceptability criteria. It dictates exactly how crimps, splices, and routing should look.
USCAR Specifications: These dictate performance testing rules. USCAR-2 specifically tests automotive electrical connector systems. It ensures connectors survive vibration and thermal cycling.
The ultimate decision takeaway is clear. Any viable manufacturing partner must provide auditable proof. They must show transparent compliance with these exact frameworks. Do not accept internal quality documents in place of recognized certifications.
Choosing the right vendor dictates your project's success. You must categorize your solutions accurately. Distinguish between rapid-prototyping shops and high-volume Tier 1 suppliers. Low-volume specialty manufacturers excel at complex, low-run builds. Tier 1 suppliers offer massive scale but demand rigid commitments.
Quality assurance cannot rely on visual inspection alone. You must ask specific technical questions. Do they utilize automated test equipment (ATE)? ATE removes human error from final inspections. You should require hard evidence of their testing regimes.
Demand High Potential (Hi-Pot) testing documentation. Hi-Pot testing ensures insulation withstands high voltages without leaking current. Require strict continuity testing. Ask for pull-force testing data. Pull testing verifies terminal crimp integrity. A weak crimp will inevitably fail under driving vibrations.
A true partner does more than build to print. They offer deep co-engineering capabilities. Assess their ability to conduct a Design for Manufacturing (DFM) review. They should analyze your schematics critically. A great vendor suggests optimizations before tooling begins. They spot opportunities for weight reduction. They find cost savings by standardizing connectors. They improve routing to prevent assembly line bottlenecks.
Global component shortages disrupt production schedules constantly. You must assess a vendor's sourcing agility. Look at their ability to source specific, proprietary connectors. Brands like TE Connectivity and Molex often face lead time delays. A resilient vendor holds strategic buffer stock. More importantly, they never substitute inferior, unverified parts to meet a deadline. Unauthorized substitutions void compliance and introduce catastrophic risks.
The automotive wire harness is a highly engineered sub-system. Failure is simply not an option. Successful procurement relies on a delicate balance. You must weigh electrical performance against weight, durability, and cost. Ignoring any of these factors jeopardizes the entire vehicle architecture.
You must transition from conceptual design to strict vendor evaluation. Prioritize strict IPC-A-620 compliance above all else. Demand rigorous automated testing from your suppliers. Insist on transparent, collaborative DFM capabilities to optimize your initial designs.
Take action before finalizing your next production run. Schedule a deep technical consultation with your prospective vendors. Submit your current schematics for a comprehensive DFM review. Download a standardized harness evaluation checklist to audit their facilities effectively.
A: The distinction is highly technical. Cable assemblies encase wires in a single heavy-duty outer jacket. We use them for extreme external environments. A wire harness groups multiple distinct wires and cables together. It provides organized internal routing throughout a vehicle chassis. Harnesses utilize zip ties, tape, and split loom rather than a single extruded jacket.
A: Manufacturers use objective QA processes to ensure zero defects. They run automated electrical continuity checks to verify pinouts. They conduct Hi-Pot (dielectric withstand) testing to detect insulation leaks. They also perform mechanical stress testing. This includes strict pull-force tests on terminal crimps and vibration simulations to guarantee durability before OEM assembly.
A: Failures usually stem from physical realities. Physical chafing and abrasion occur due to poor routing against metal brackets. Terminal corrosion happens when moisture ingresses through unsealed connectors. Thermal breakdown melts insulation when cables route too close to exhaust pipes or high-voltage components without proper heat shielding.
