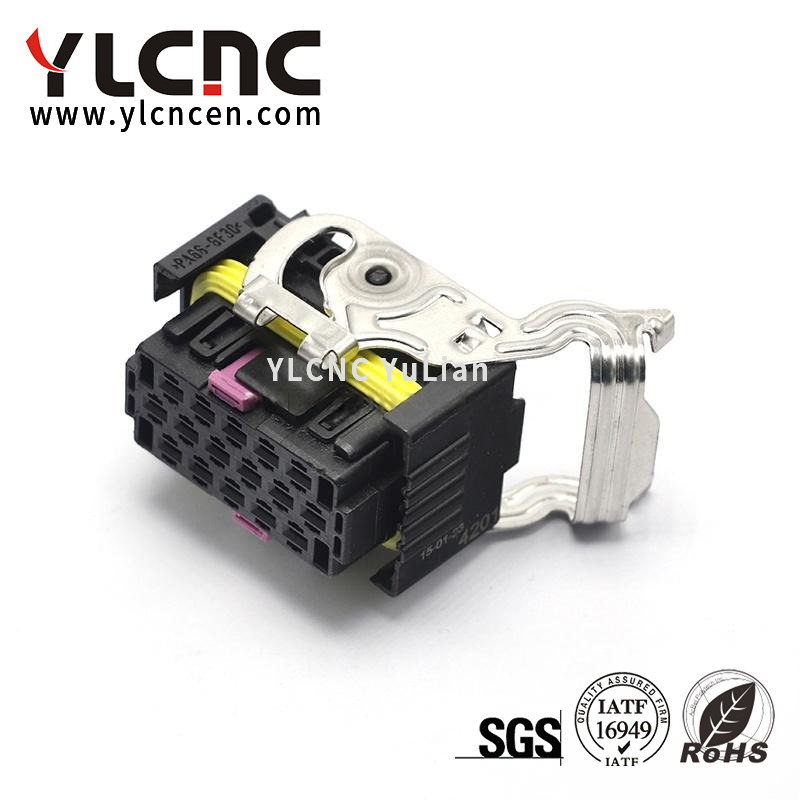

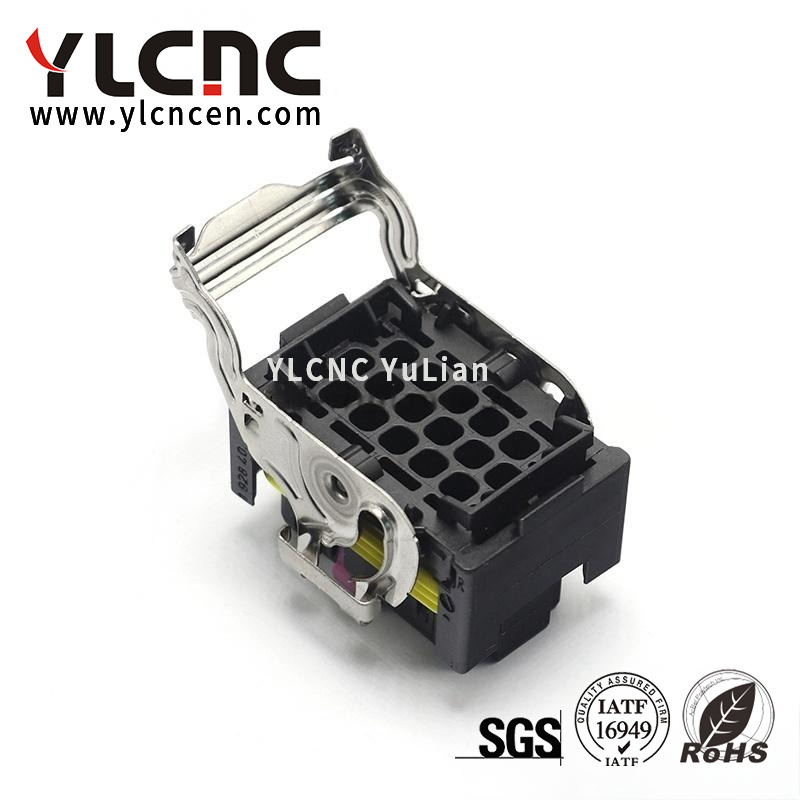

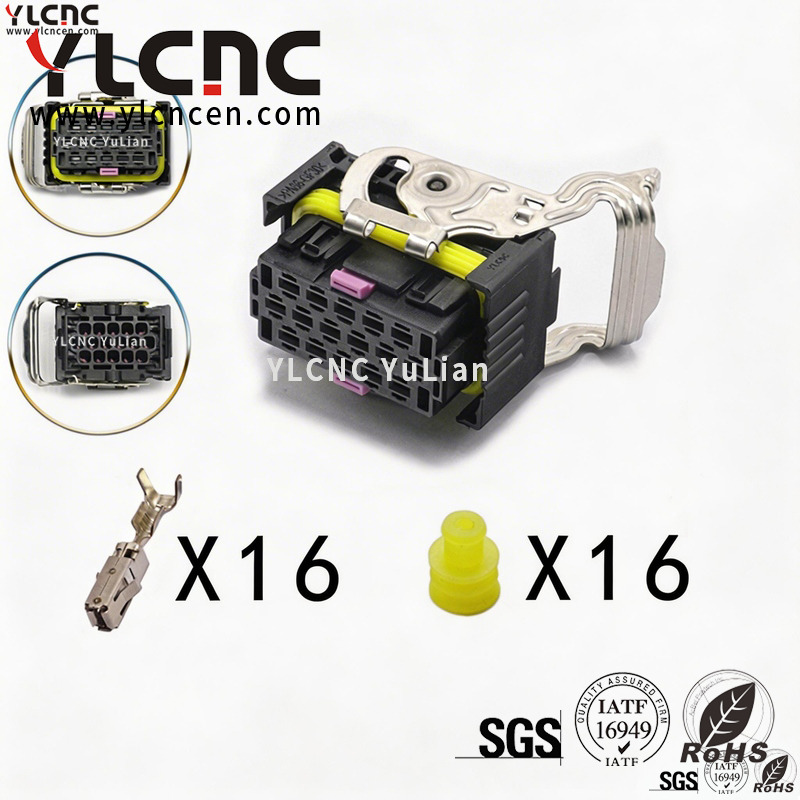

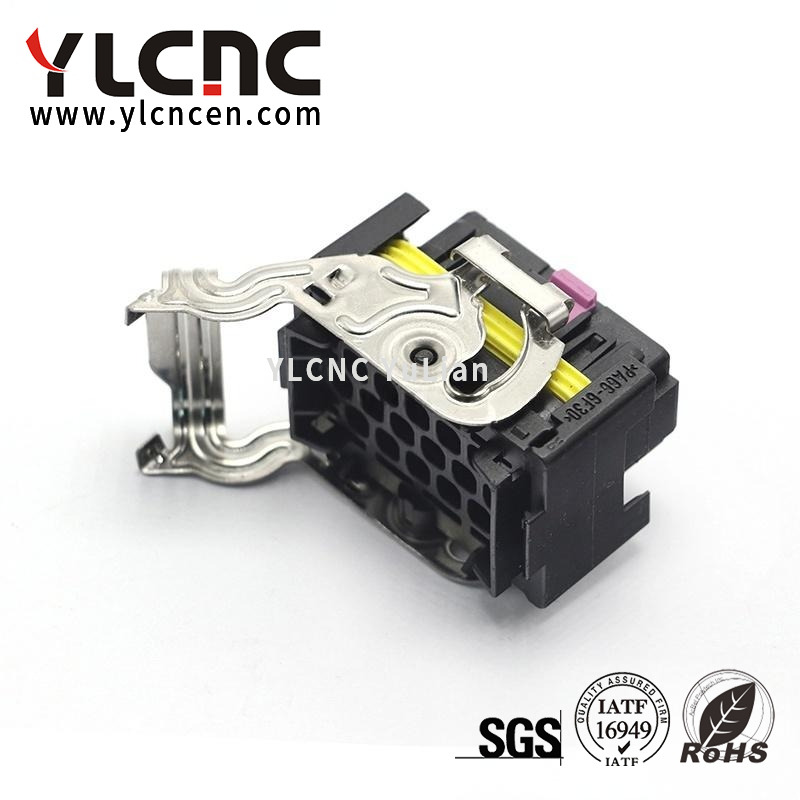

YLCNC 1928404201 16 PIN Bosch EDC7 Module Connector DJ7163-3.5-200

Automotive connectors are core connection components of the vehicle electrical system, widely used in fuel vehicles, new energy vehicles, construction machinery, motorcycles, agricultural machinery and modified equipment. This 16 PIN sealed auto connector belongs to the High Pole Connectors series, serving as a professional aftermarket replacement wiring component exclusively designed for Bosch EDC7 module connection. It is fully compatible with VW and Ford trucks and buses. Equipped with independent single-wire seals for each cavity, it adopts 3.5-series heavy-duty terminals to ensure stable transmission of control signals and high load current for engine electronic control modules. It is extensively applied to wiring harness connection of Bosch EDC7 ECU modules on VW and Ford commercial vehicles including trucks and buses. Constructed with PA66+GF30 glass fiber reinforced housing material, the connector features superior high-temperature resistance, mechanical strength, oil resistance and anti-vibration performance to withstand harsh engine compartment operating environments of commercial vehicles. The black PA66+GF30 housing is the standard universal color for engine and chassis wiring harnesses of commercial vehicles, facilitating unified classification and error-proof identification during assembly line production and after-sales maintenance.

If you need samples, you can place an order through our online store link: www.ylcnc-auto.com

Specifications

Company Strengths

• 18 Years Specialized Automotive Connector Production Experience

• 11,000 ㎡ Standardized Production Workshop

• More Than 270 Professional Production & Testing Staff

• Over 15,000 Automotive Connector & Harness Product Models

• Full IATF16949 Automotive Quality System Certified

• Independent Professional R&D & Precision Mold Development Team

• Full Custom Mould Development & OEM Domestic Replacement Solutions

• Strict Full Inspection System, Stable Quality & Punctual Shipment

Product Advantages

• 1. Exact OEM Replacement Fit: Matches aftermarket reference part DJ7163‑3.5‑200 with OE number 1928404201, 16‑cavity 3.5‑series terminal layout fully interchangeable with original factory High Pole Connectors for Bosch EDC7 module applications, perfectly compatible with VW and Ford trucks & buses.

• 2. High Toughness Modified Black PA66+GF30 Housing: Reinforced black PA66+30% glass fiber plastic shell with outstanding heat resistance, oil resistance, anti‑aging and anti‑vibration performance. Thickened wall construction enhances structural stability under long‑term heavy-duty vehicle vibration, black housing serves as the standard universal color for commercial vehicle ECU wiring harness connectors for easy identification.

• 3. Independent Single Wire Seal Design:Each of the 16 wire terminals is equipped with individual silicone rubber seal matched to corresponding wire gauges, completely isolating water, dust and mud, effectively avoiding signal disconnection for Bosch EDC7 control modules under harsh engine compartment alternating temperature & humidity environments of commercial vehicles.

• 4. Factory Direct Supply Cost Advantage: Fully automated production lines, 100% electrical performance and waterproof tightness inspection before delivery, abundant stock and competitive bulk prices for commercial vehicle wiring harness manufacturers and repair workshops specializing in VW and Ford trucks & buses.

Main Application Scenarios

• 1. Bosch EDC7 Module Wiring Harness Connection: 16‑pin 3.5‑series black sealed connector with OE number 1928404201 for Bosch EDC7 control module, compatible with VW and Ford trucks & buses, belongs to High Pole Connectors series and made of PA66+GF30 housing material.

• 2. Commercial Vehicle ECU Signal & Power Transmission: Waterproof multi‑pin connector for Bosch EDC7 ECU signal acquisition and powertrain wiring harness integration of heavy-duty trucks and passenger buses.

• 3. Harsh Commercial Vehicle Powertrain Reliable Circuits: Stable long‑term operation under damp, high‑temperature, splashing and temperature alternating conditions around engine and chassis of matching truck and bus models.

• 4. Heavy-Duty Commercial Vehicle Aftermarket Replacement Spare Parts: Standard black 16‑pin PA66+GF30 sealed connector with matching OE number widely stocked for repair workshops and international commercial vehicle parts distributors for Bosch EDC7 electronic control system maintenance.

Service Advantages

1.Customized Services: We develop products per customers’ drawings, samples and parameter requirements, and optimize product structures. Mould development and domestic alternative replacement are available.

2.Standard Services : Supply of standard products with steady production capacity and controllable lead time. Fast production and delivery for bulk regular orders.

3. Value-added Services: Professional technical support is provided. We can offer various qualification documents and test reports, with prompt after-sales response.
