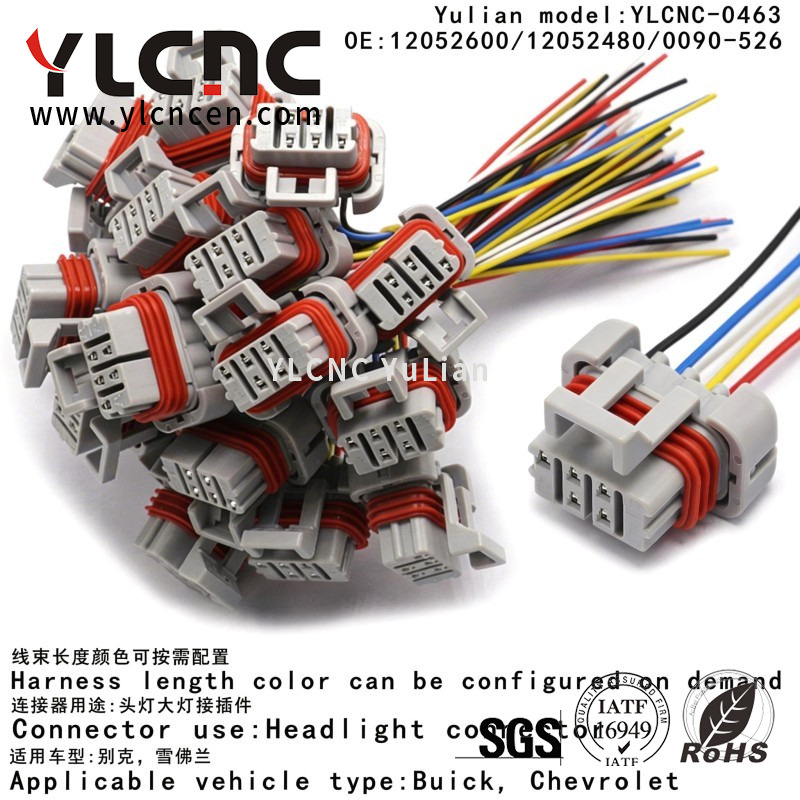

YLCNC 12052600 5 PIN Headlight Headlight Connector Automotive Harness Socket

Industry data shows that connector failures account for a significant share of automotive electrical faults, especially in 5-pin circuits exposed to moisture. The YLCNC-0463 is a 5-pin sealed automotive wire harness socket that cross-references OE NO. 12052600, offering wire-to-wire waterproof protection with both male and female types are available. All units are CE, IATF16949 and RoHS certified; samples are available and bulk stock is maintained for repair shops, distributors and harness factories.

If you need samples, you can place an order through our online store link: www.ylcnc-auto.com

Specifications

Company Strengths

• 18 Years Production Experience

• 11,000 ㎡ Production Base

• 270+ Employees

• 15,000+ Product Types

• IATF16949 Certified

• Professional R&D & Mold Team

• Full Customization & Domestic Replacement

• Stable Quality & On-Time Delivery

Product Advantages

1. Color-coded housing: The gray housing provides visual identification during assembly and servicing, reducing wiring errors and speeding up harness production.

2. Durable under extreme conditions: Built to withstand temperature extremes, chemical exposure and mechanical stress, ensuring long-term reliability in demanding automotive environments.

3. Sealed waterproof design: Each cavity features a single wire seal that blocks water, dust and oil, keeping signal stable in engine bay and underbody conditions.

4. Durable PBT construction: The gray PBT housing offers excellent electrical insulation, chemical resistance and thermal stability for prolonged service life.

5. Stable wire-to-wire locking: The 5-position layout with positive latch prevents accidental disconnection and intermittent contact faults during vehicle operation.

6. Direct OE alternative: The YLCNC-0463 cross-references OE NO. 12052600, offering identical 5-pin pinout and housing dimensions for hassle-free replacement in existing harnesses.

Main Application Scenarios

1. Factory-fit connector solution for Chevrolet, Buick applications, matching the original 5-pin mounting and pinout specifications.

2. Engine sensor connections, including coolant temperature, camshaft and crankshaft position sensors that demand stable 5-wire signaling.

3. Exterior lighting harnesses where a waterproof 5-pin connection is essential for reliable lamp operation in all weather.

4. Control unit and module connections in vehicle electrical systems, consolidating 5 wires into one secure interface.

5. Harness repair shops and custom build projects needing a dependable 5-pin waterproof replacement for OE NO. 12052600.

Service Advantages

1. Customized Services: We develop products per customers’ drawings, samples and parameter requirements, and optimize product structures. Mould development and domestic alternative replacement are available.

2. Standard Services: Supply of standard products with steady production capacity and controllable lead time. Fast production and delivery for bulk regular orders.

3. Value-added Services: Professional technical support is provided. We can offer various qualification documents and test reports, with prompt after-sales response.

Video

Inspection Equipments

FAQ

Q1: Is this connector a cross-reference replacement for OE NO. 12052600?

A1: Yes. YLCNC-0463 is a cross-reference replacement for OE NO. 12052600, with the same 5-pin layout, PBT housing and single wire seal, fitting all original automotive applications of the 12052600 connector.

Q2: Do you accept small batch trial orders? What is the MOQ?

A2: Small batch trial orders are accepted, and the specific MOQ can be negotiated flexibly. We fully cooperate with customers' testing and market expansion needs.

Q3: Can this connector be used in heavy-duty trucks and commercial vehicles?

A3: Yes. The sealed PBT housing and single wire seal design make it suitable for heavy-duty truck, construction equipment and commercial vehicle applications where durability and waterproof protection are essential.

Q4: How does the single wire seal work?

A4: A single wire seal is installed on each wire before crimping the terminal. When the terminal is inserted into the connector cavity, the silicone seal compresses against the housing wall, creating a watertight barrier that prevents moisture from entering the connection.

Q5: Is special tooling required to install this connector?

A5: Standard crimping tools compatible with the terminal size are sufficient for installation. The connector uses a positive-latch design that mates by hand, and terminals can be removed with a standard extraction tool if needed.

Q6: Why does this connector have 5 positions?

A6: The 5-position design matches the original OE 12052600 connector circuit count, ensuring each wire has its own sealed cavity. This maintains the same electrical layout and pinout as the factory part.
